KMK Printing & Packaging Machinery, KMK ZLFM-1080MCW, 2024 (Ref.:M6220)
Year: 2024
Price: on request
Basic Configuration:
1. Automatic feeder: sheet-fed, Shaftless servo motor feeder, 8 suction nozzles
achieve high speed and high precision, to ensure that paper is continuously fed
into the machine. Non-stop feeder, Standard configuration with pre-stack unit.
Suction device guarantees stability and smooth of paper sending.
2. Powder remove calender: heating roller with scraper effectively clean the powder
and dust in the surface of paper. Improve the brightness after laminating.
3. Water based glue coating unit: roller coat, Coating glue on the sheets.
4. IR dryer: Using infrared lamp heating, high efficiency and energy saving hot air
circulation drying channel.
5. Lamination main unit: Multi purpose f
film laminating/ window film laminating
lamination heating pressing cylinder: The machine equipped with separate
circulating temperature controller besid
heating. energy saving. environmental pr |
|
|
KMK Printing & Packaging Machinery, KMK ZLFM-1080SJR, 2024 (Ref.:M6221)
Year: 2024
Price: on request
Non-stop Feeder
Non-stop Stacker
Hot knife cutter & disc cutter
Mold temperature controller
Thin paper anti curling
Front lay
Sheets drawing
Optional:
- Chain knife cutting system
- Double lamination, Embossing unit
- UV enhancement unit
- Powder cleaning device
Youtube-Video Link: https://youtu.be/kKX |
|
|
KMK Printing & Packaging Machinery, KMK ZLFM-1080LCR, 2024 (Ref.:M6222)
Year: 2024
Price: on request
Max. speed 100 m/min, 40-70 kWh
With latest laminating technology
Beyond film covering technology
1 to 2 people to operate
Basic Configuration:
Automatic feeder: sheet-fed, Shaftless servo motor feeder, 8 suction nozzles achieve high speed and
high precision, to ensure that paper is continuously fed into the machine. Non-stop feeder, Standard
configuration with pre-stack unit. Suction device guarantees stability and smooth of paper sending.
Powder remove calender: heating roller with scraper effectively clean the powder and dust in the
surface of paper. Improve the brightness
Lamination main unit: Multi purpose for
Glue Coating and drying cylinder, lamination heating pressing cylinder: The machine equipped with
separate circulating temperature control
energy saving. environmental protection. |
|
|
|
|
KMK Printing & Packaging Machinery, KMK ZLFM-1080LC, 2024 (Ref.:M6293)
Year: 2024
Price: on request
Max. speed 100 m/min, 40-70 kWh
With latest laminating technology
Beyond film covering technology
1 to 2 people to operate
Basic Configuration:
Automatic feeder: sheet-fed, Shaftless servo motor feeder, 8 suction nozzles achieve high speed and
high precision, to ensure that paper is continuously fed into the machine. Non-stop feeder, Standard
configuration with pre-stack unit. Suction device guarantees stability and smooth of paper sending.
Powder remove calender: heating roller with scraper effectively clean the powder and dust in the
surface of paper. Improve the brightness
Lamination main unit: Multi purpose for
Glue Coating and drying cylinder, lamination heating pressing cylinder: The machine equipped with
separate circulating temperature control
energy saving. environmental protection. |
|
|
KMK Printing & Packaging Machinery, KMK ZLFM-1080MC, 2024 (Ref.:M6292)
Year: 2024
Price: on request
Basic Configuration:
1. Automatic feeder: sheet-fed, Shaftless servo motor feeder, 8 suction nozzles
achieve high speed and high precision, to ensure that paper is continuously fed
into the machine. Non-stop feeder, Standard configuration with pre-stack unit.
Suction device guarantees stability and smooth of paper sending.
2. Powder remove calender: heating roller with scraper effectively clean the powder
and dust in the surface of paper. Improve the brightness after laminating.
3. Water based glue coating unit: roller coat, Coating glue on the sheets.
4. IR dryer: Using infrared lamp heating, high efficiency and energy saving hot air
circulation drying channel.
5. Lamination main unit: Multi purpose f
film laminating/ window film laminating
lamination heating pressing cylinder: The machine equipped with separate
circulating temperature controller besid
heating. energy saving. environmental pr |
|
|
KMK Printing & Packaging Machinery, KMK RFM-106MC, 2024 (Ref.:M5588)
Year: 2024 Size: 1060 × 1100mm
Price: on request
Max. sheet size: W1060×L1100mm
Min. sheet size: W320×L300mm
Max. mechanical speed: 100m/min, 11000sheets/hour
Laminating speed: 20-100m/min
Paper thickness: 105-500gsm
Piling height: 1300mm
Stacker piling height: 1300mm
Total power: 78kW (380V, AC3f, 50Hz) (normal working
power: 28-38kW)
Overall dimension: L 11277 × W 2510 × H 3030 mm
https://www.youtube.com/watch?v=TPqhpGp3 |
|
|
KMK Printing & Packaging Machinery, KMK HT-760P, 2024 (Ref.:M5378)
Year: 2024 Size: 760 x 520 mm
Price: on request
Max. cutting size: 760 x 520 mm
Min. cutting size: 320 x 260 mm
Max. pressure: 250 Tons
Thickness of corrugated paper: 80g/m to E flute corrugated paper =4mm
Die-cutting precision: ±0.075mm
Max Feeding Pile Height: 1280 mm
Max Delivery Pile Height: 1160mm
Max. speed: 9.000 sheets/hour
Max. die cutting and stripping speed: 9.000 sheets / hour
Video link: https://youtu.be/DAAeRV-YKDY |
|
|
KMK Printing & Packaging Machinery, KMK XY-2600, 2024 (Ref.:M6299)
Year: 2024 Size: 420 x 2600 mm
Price: on request
Technological Parameter:
Sticky box:
Max. paper size (A+B) *2 (mm): 2600
Min. paper size (A+B) *2 (mm): 420
Max. carton length A (mm): 900
Min. carton length A (mm): 130
Max. carton width B (mm): 650
Min. carton width B (mm): 80
Max. paper height (C+D+C) (mm): 1200
Min. paper height (C+D+C) (mm): 170
Max. cap size C (mm): 350
Min. cap size C (mm): 50
The minimum height D (mm): 100 |
|
|
|
|
BIMEC SRL, TMA-20, 2008 (Ref.:M6380)
Year: 2008 Size: 2100 - 2600 mm
Price: on request
Working widths 2100 - 2600 mm
Inner diameter 70, 76.2 152.4 mm
Maximum wall thickness 15 mm
Minimum cutting width 10 mm |
|
|
KMK Printing & Packaging Machinery, KMK HT-1050A, 2024 (Ref.:M5379)
Year: 2024 Size: 730 x 1040 mm
Price: on request
Max. cutting size: 730 x 1040 mm
Max. pressure: 300 Tons
Thickness of material: 0,1 - 2 mm
Die-cutting precision: ±0.1 mm
Max. feeding pile height: 1280 mm
Max. speed: 7.500 sheets / hour
Machine weight: 15.000 kg
Dimensions: Lenght 582 x Width 386,5 x Height 260 cm
Power: 16 kw
YouTube-Link: https://youtu.be/StMm3ywLfQ8 |
|
|
KMK Printing & Packaging Machinery, KMK AEM-1050, 2024 (Ref.:M6425)
Year: 2024
Price: on request
Max. cutting size: 730 x 1040 mm
Die chase inner size: 760 x 1144 mm
Cutting plate size: 736 x 1080 mm
Min. gripper length: 8 mm
Cutting precision: ±0.1 mm
Max. cutting pressure: 350 t
Max. cutting speed: 7500 sheets/hour
Pre-stacking height: 1550 mm
Delivery pile height: 1400 mm
Cardboard: 0.1-2 mm
Corrugated paper: < 4 mm
Main motor power: 11 kw
Heating area power: /
Total power: 17.8 kw
Weight: 16 t |
|
|
KMK Printing & Packaging Machinery, KMK AEM-1050Q, 2024 (Ref.:M6426)
Year: 2024
Price: on request
Max. cutting size: 730 x 1040 mm
Die chase inner size: 760 x 1144 mm
Cutting plate size: 736 x 1080 mm
Min. gripper length: 8 mm
Cutting precision: ±0.1 mm
Max. cutting pressure: 350 t
Max. cutting speed: 7500 sheets/hour
Pre-stacking height: 1550 mm
Delivery pile height: 1400 mm
Cardboard: 0.1-2 mm
Corrugated paper: < 4 mm
Main motor power: 11 kw
Heating area power: /
Total power: 17.8 kw
Weight: 18 t |
|
|
KMK Printing & Packaging Machinery, KMK AEM-1050QQ, 2024 (Ref.:M6427)
Year: 2024
Price: on request
Max. cutting size: 730 x 1040 mm
Die chase inner size: 760 x 1144 mm
Cutting plate size: 736 x 1080 mm
Min. gripper length: 8 mm
Cutting precision: ±0.1 mm
Max. cutting pressure: 350 t
Max. cutting speed: 7500 sheets/hour
Pre-stacking height: 1550 mm
Delivery pile height: 1400 mm
Cardboard: 0.1-2 mm
Corrugated paper: < 4 mm
Main motor power: 11 kw
Heating area power: /
Total power: 17.8 kw
Weight: 18 t |
|
|
KMK Printing & Packaging Machinery, KMK AEM-1050M, 2024 (Ref.:M6428)
Year: 2024
Price: on request
Max. cutting size: 730 x 1040 mm
Die chase inner size: 760 x 1144 mm
Cutting plate size: 736 x 1080 mm
Min. gripper length: 8 mm
Cutting precision: ±0.1 mm
Max. cutting pressure: 600 t
Max. cutting speed: 7500 sheets/hour
Pre-stacking height: 1550 mm
Delivery pile height: 1400 mm
Cardboard: 0.1-2 mm
Corrugated paper: < 4 mm
Main motor power: 15 kw
Heating area power: 24 kw
Total power: 50 kw
Weight: 22 t |
|
|
KMK Printing & Packaging Machinery, KMK AEM-1050MQ, 2024 (Ref.:M6429)
Year: 2024
Price: on request
Max. cutting size: 730 x 1040 mm
Die chase inner size: 760 x 1144 mm
Cutting plate size: 736 x 1080 mm
Min. gripper length: 8 mm
Cutting precision: ±0.1 mm
Max. cutting pressure: 600 t
Max. cutting speed: 7500 sheets/hour
Pre-stacking height: 1550 mm
Delivery pile height: 1400 mm
Cardboard: 0.1-2 mm
Corrugated paper: < 4 mm
Main motor power: 15 kw
Heating area power: 24 kw
Total power: 50 kw
Weight: 24 t |
|
|
Chengyuan, Fast 1050, 2022 (Ref.:M6436)
Year: 2022
Price: on request
Min. size: 400×360 mm
Max. size: 1040×730 mm
Paper Range: Cardboard80-1200g/m², corrugated=4mm
Gripper Margin: 8mm
Max.die Cutting Speed: 7500 s/h
Max.die Cutting Pressure: 300T
Total Power 23 Kw, Power 380v 50Hz, Total Weight: 16T
Dimensions: 7016×4049×2030 mm
Video link: https://www.youtube.com/watch?v=1W7EIdcv6_s |
|
|

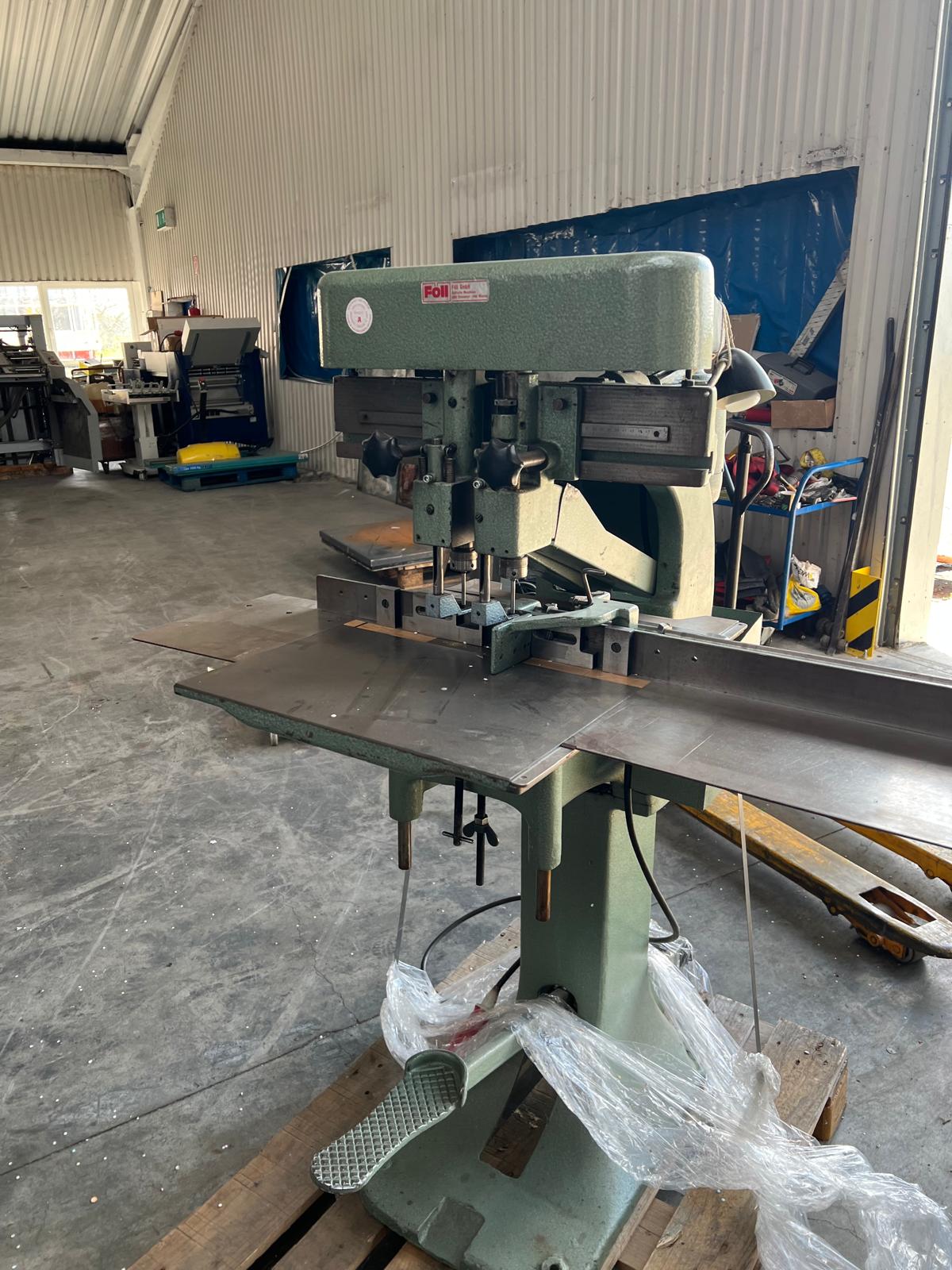

Hang, 107-30, 1993 (Ref.:M6212)
Year: 1993 Size: 3 x 8 mm
Price: on request
Number of drill heads: 4
Drill diameter: 3-8 mm
Drill distance: 36-260 mm
Stacking height: 60 mm
Number of revolutions: 1800 / min |
|
|
|
|
|
|
|
|
Heidelberg, KSD, 1974 (Ref.:M6402)
Year: 1974 Size: 460 x 640 mm
Price: on request
The Heidelberg KSD paper processing machine from 1974 is a proven letterpress machine designed for
handling paper formats up to 460 x 640 mm. It is renowned for its robust construction and
reliability in daily operations. This machine is specifically built for high-quality printing tasks
and offers a range of features that make it both efficient and versatile.
Features:
- **Letterpress unit for precise printing**
- **Paper format up to 460 x 640 mm**
- **Automatic sheet feeder** for continuous operation
- **Adjustable printing pressure** to accommodate various material requirements
- **Integrated sheet brake** to reduce p
- **Registration control** for accurate
- **Delivery device** for stacked output of printed sheets
- **Control panel** for easy process mon
- **Durable construction** for long-term |
|
|
|
|
|
|
|
|
|
|
KMK Printing & Packaging Machinery, KMK CM-1500A (2 Reels), 2024 (Ref.:M6294)
Year: 2024 Size: 450 x 1650 mm
Price: on request
Model: KMK CM-1500A
Paper Cutting Form: The upper blade cuts backward, and the lower blade is fixed.
Paper Weight Range: 60-550g
Maximum Reel Diameter: 1800mm
Maximum Roll Width: 1500mm
Cutting Length Range: 450-1600mm
Number of Cut Sheets: 2 Pieces
Cutting Accuracy: +/- %0,1
Cutting length: >1000mm
Maximum Cutting Speed: 400 cuts/minute
Maximum Carton Stack Height: 1500 Mm
Air Pressure Requirements: 0.8 Mpa
Power Supply: 380V/220V × 50Hz
Total Machine Weight: 11,000 Kg
Full Load Power: 26 Kw |
|
|
|
|
Rotoflex, VSI 250, 1999 (Ref.:M6437)
Year: 1999 Size: 250 mm
Price: on request
- **Unwind diameter**: 28 inches
- **Rewind diameter**: 18 inches
- **Web width**: 250 mm (10 inches)
- **Voltage**: 240V, 18 amps, 2 KVA
- **Slitting system**: Razor and scissor/shear knives
- **Additional features**: Strobe light, web guide, and manual load |
|
|
KMK Printing packaging Maschinery, KMK XY-1060P, 2024 (Ref.:M6300)
Year: 2024 Size: 450 x 360 mm
Price: on request
KMK XY-1060 P Die-Cutting And Stripping Machine (Feeder Feeding)
Max. die-cutting speed (sheets/hour): 7500
Die-cutting precision (mm): + 0.1
Max. die-cutting pressure (t): 250
Max. paper size (mm): 1060*760
Min. paper size (mm): 450*360
Min. die-cutting size (mm): 1050*750
Paper processed
Cardboard: 80-2000 g/m2
Corrugated paper (max. thickness/mm): < 5
Total power (kW): 18
Weight (t): 16
Dimensions (L*W*H) (mm): 5950*2100*2300 |
|
|
KMK Printing packaging Maschinery, KMK XY-1300P, 2024 (Ref.:M6301)
Year: 2024 Size: 550 x 450 mm
Price: on request
KMK XY-1300 P Die-Cutting And Stripping Machine (Feeder Feeding)
Max. die-cutting speed (sheets/hour): 5000
Die-cutting precision (mm): + 0.25
Max. die-cutting pressure (t): 300
Max. paper size (mm): 1320*950
Min. paper size (mm): 550*450
Min. die-cutting size (mm): 1310*940
Paper processed
Cardboard
Corrugated paper (max. thickness/mm): < 6
Total power (kW): 18
Weight (t): 18
Dimensions (L*W*H) (mm): 7300*2300*2400 |
|
|
KMK Printing packaging Maschinery, KMK XY-1500P, 2024 (Ref.:M6302)
Year: 2024 Size: 550 x 450 mm
Price: on request
KMK XY-1500 P Die-Cutting And Stripping Machine (Feeder Feeding)
Max. die-cutting speed (sheets/hour): 4500
Die-cutting precision (mm): + 0.25
Max. die-cutting pressure (t): 300
Max. paper size (mm): 1500*1100
Min. paper size (mm): 550*450
Min. die-cutting size (mm): 1490*1090
Paper processed
Cardboard
Corrugated paper (max. thickness/mm): < 8
Total power (kW): 22
Weight (t): 20
Dimensions (L*W*H) (mm): 8400*2600*2500 |
|
|
KMK Printing & Packaging Machinery, KMK AEM-1050T, 2024 (Ref.:M6459)
Year: 2024
Price: on request
Max. paper size: 750 x 1050 mm
Min. paper size: 360 x 400 mm
Max. cutting size: 730 x 1040 mm
Die chase inner size: 760 x 1144 mm
Cutting plate size: 736 x 1080 mm
Max. foil stamping size: 720 x 1040 mm
Min. gripper length: 8 mm
Cutting precision: ±0.1 mm
Foil stamping precision: ±0.125 mm
Max. cutting pressure: 350 t
Max. cutting speed: 7500 sheets/hour
Max. foil stamping speed: 7500 sheets/ho
Max. foil roll diameter: 200~250 mm
Vertical foil roll width: 50~1060 mm
Horizontal foil roll width: 50~760 mm |
|
|
|
|
|
|
|
|
|
|
|
|
Rhin-O-Tuff, HD 7700 Ultima, - (Ref.:M6007)
Size: 356 x 356
Price: on request
Punching device + stacker + 2x wire comb closing device
HD 7700 Ultima punching device (calendar punch including manual thumb hole punch):
Punching thickness: up to 35 sheets (80 g / m² paper), 3.5 mm
Punching width: 356 mm with open sides
Pitch: 3: 1, 2: 1, plastic ring binding, spiral binding 5 mm / 6 mm
APES 14 stacker:
Ejection and stacking in one step
Processes paper sizes from 140 x 140 mm to 356 x 356 mm
HC 8318 manual wire comb closing device for calendars:
Binding thickness up to approx. 120 sheets (80 g / m² paper)
Binding width: 457 mm
Division: 3: 1
HC 8370 manual wire comb closing device for A4 +
Binding thickness up to approx. 120 shee
Binding width: 356 mm |
|
|
|
|
MKS Maschinen Handels GmbH
Lothforster Str. 46, D-41849 Wassenberg-Germany
|
|
